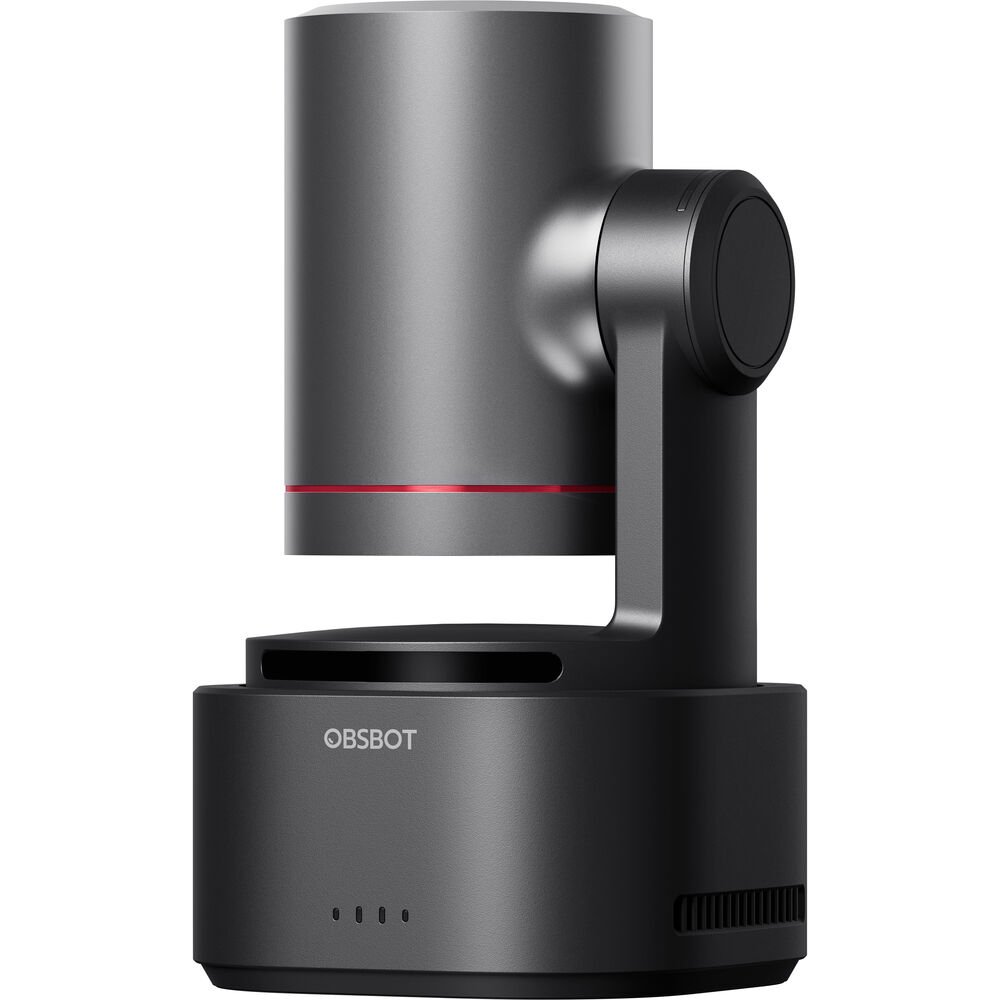

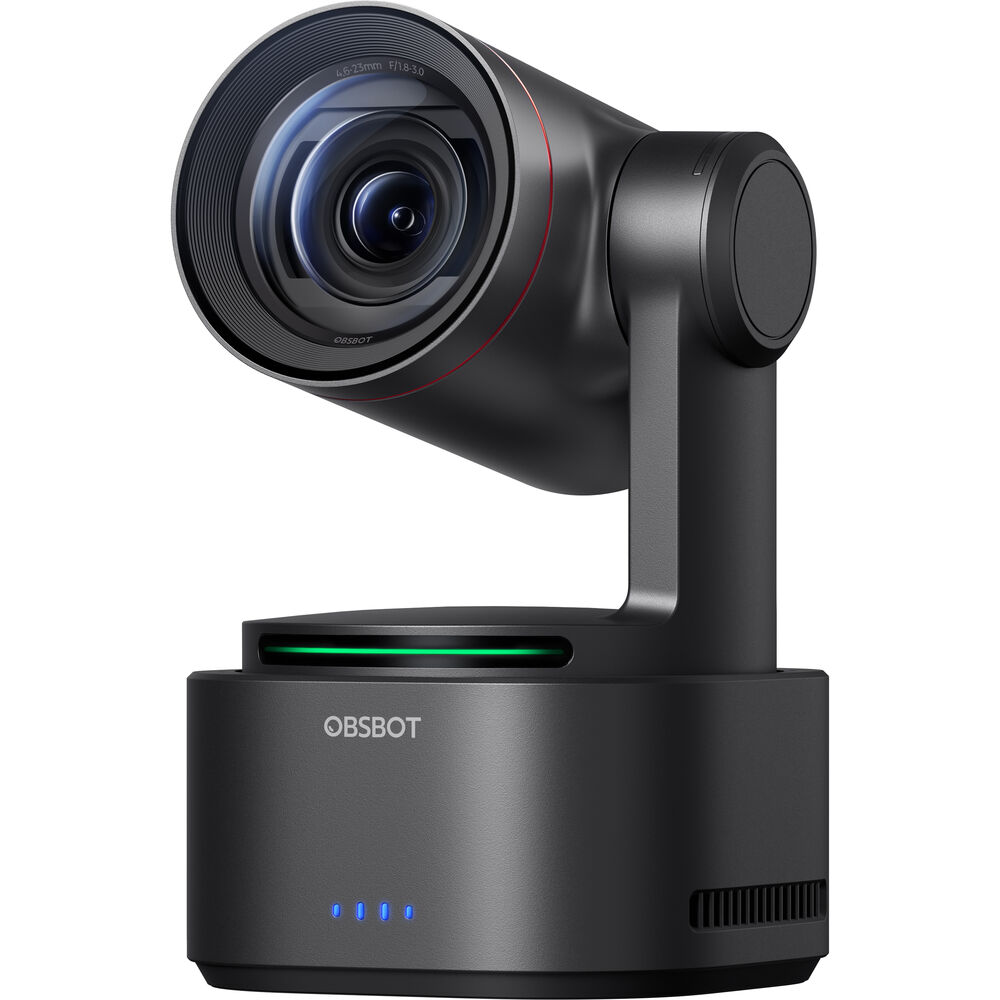

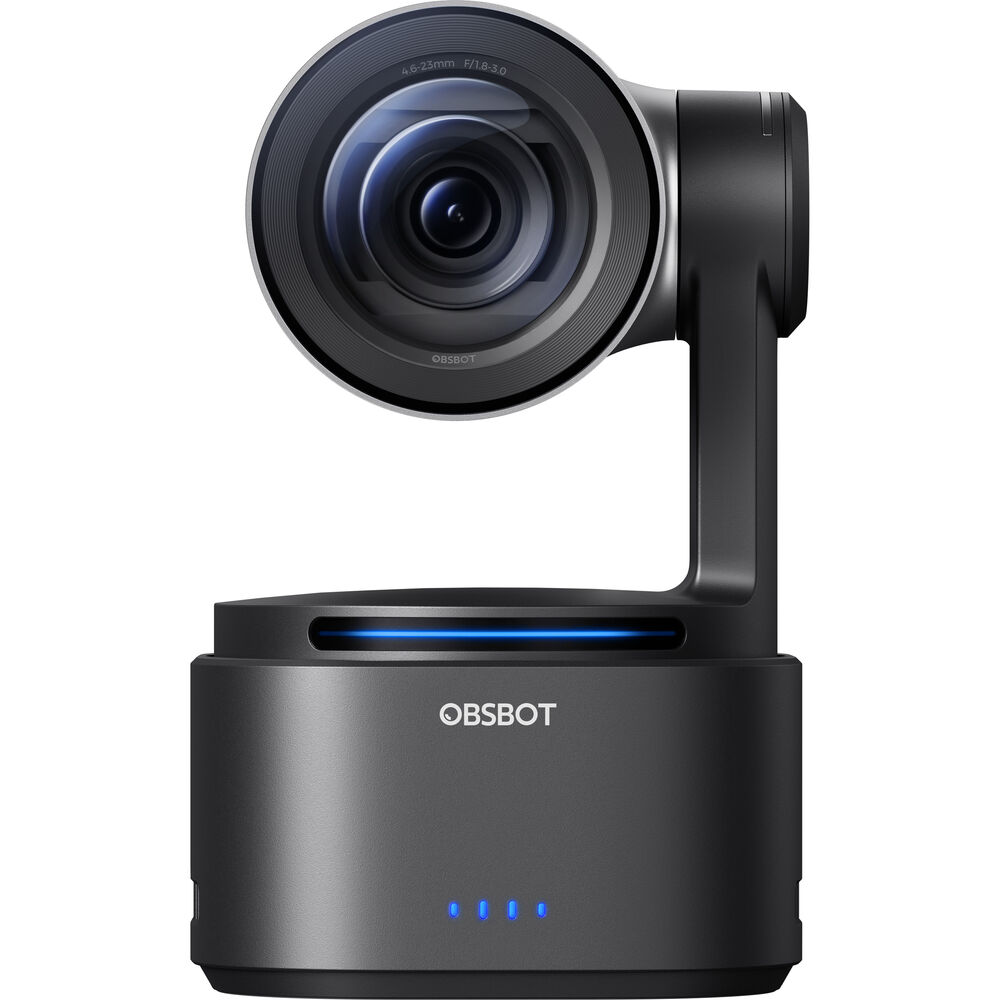

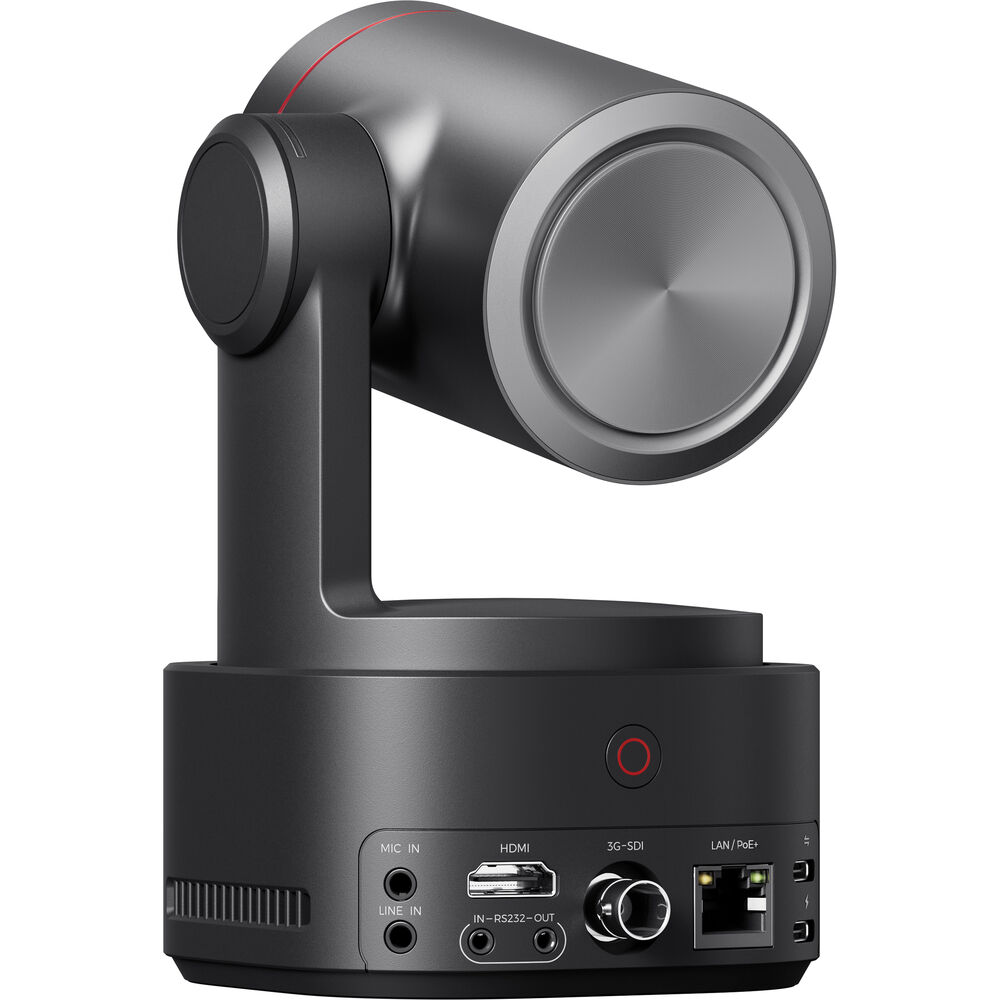

OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera

R 22,499.00
By Applix
Description

Revolutionizing live production with OBSBOT Tail 2's innovative PTZR lens design, offering seamless transitions between landscape and portrait modes. Experience unparalleled image quality through our advanced 12-piece optics system, featuring a premium 1/1.5'' CMOS sensor and versatile 12x Hybrid Zoom. Powered by next-generation AI Tracking 2.0, capture subjects with remarkable precision at extended distances. From SDI to NDI, HDMI to UVC, Tail 2 delivers professional-grade connectivity for every production need. New Tail, New Tale - Where Innovation Meets Imagination.

Key Specs
Image Sensor
1/1.5"-Type
Effective Sensor Resolution
50 Megapixel (3840 x 2160)
Shutter Speed
1/8000 to 1 Second
Max Optical Zoom
5x
Max Digital Zoom
12x
Max Video Output
via HDMI / RJ45 / SDI/BNC / USB
Up to UHD 4K at 23.98/25/29.97/30.00/48.00/50/59.94/60.00 fps
Max Recording Modes
H.264/H.265/M-JPEG
Up to UHD 4K at 23.98/25/29.97/30.00/48.00/50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
Wireless
Wi-Fi 6 (802.11ax) / Bluetooth 5.4
PoE Support
Yes: PoE+ 802.3at
Mounting
1x 1/4"-20 Female
Imaging
Image Sensor
1/1.5"-Type CMOS
Sensor Resolution
50 Megapixel (3840 x 2160) (8192 x 6144)
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/8000 to 1 Second
ISO/Gain Sensitivity
Native: 100 to 12,800
Precise Scan Rate Control
No
White Balance
Range: 2000 to 10,000K
Lens
Focal Length
22 to 110mm
Max Optical Zoom
5x
Max Digital Zoom
12x
Field of View
Diagonal: 89 to 21°
Horizontal: 81 to 18°
Maximum Aperture
f/1.8 to 3
Video Capture
Video Output
via HDMI / RJ45 / SDI/BNC / USB
3840 x 2160 at 23.98/25/29.97/30.00/48.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/25/29.97/30.00/48.00/50/59.94/60.00/120 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 23.98/25/29.97/30.00/48.00/50/59.94/60.00/120 fps
Embedded Audio
HDMI/IP/NDI/USB/BNC
Internal Recording
H.264/H.265/M-JPEG
3840 x 2160 at 23.98/25/29.97/30.00/48.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/25/29.97/30.00/48.00/59.94/60.00/120 fps
1280 x 720 at 50/59.94/60.00 fps
Audio Recording
Yes
Broadcast Output
NTSC/PAL
Control
Pan/Tilt/Roll
Pan: 340° (160 to 160°)
Tilt: 92° (-60 to 32°)
Tally Light
Yes
Networking
Wireless
Wi-Fi 6 (802.11ax) / Bluetooth 5.4
Wireless Range
459.3' / 140 m (Wi-Fi)
Interface

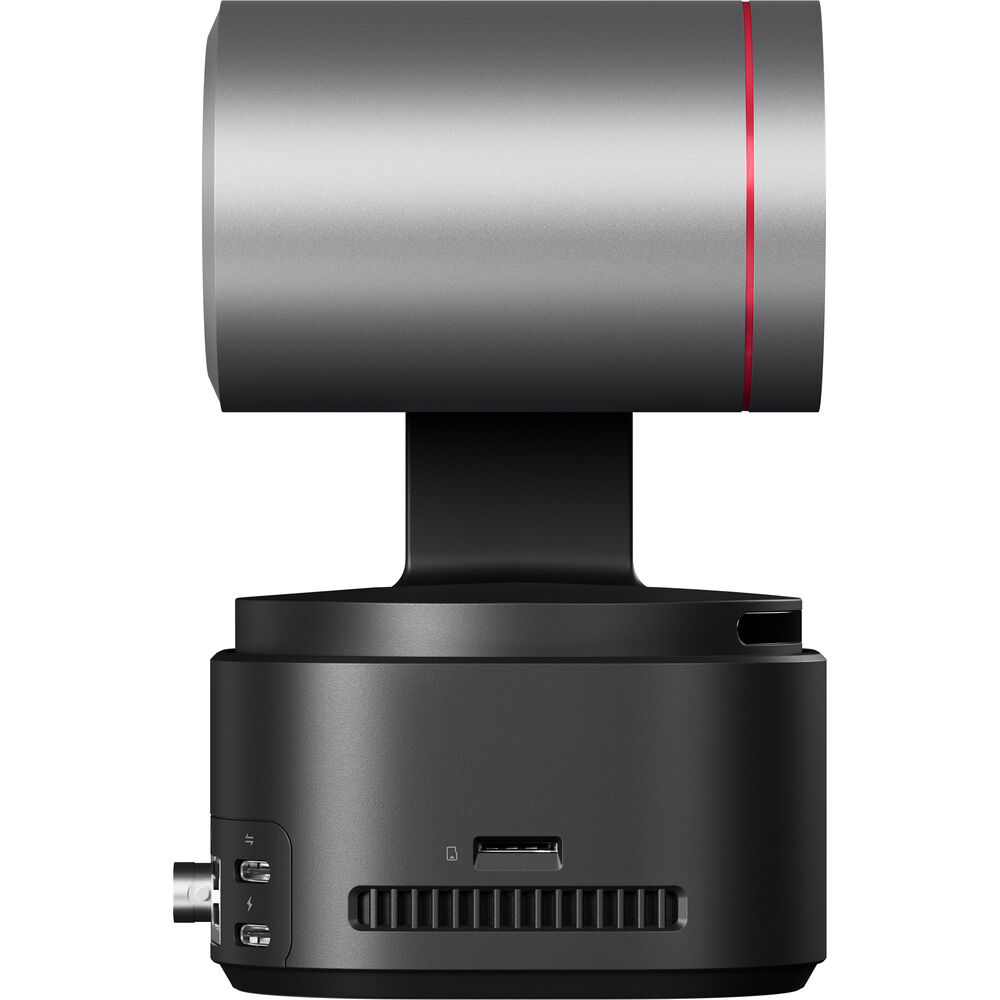

Media/Memory Card Slot
Single Slot: microSD (Unspecified Type) [1 TB Maximum]

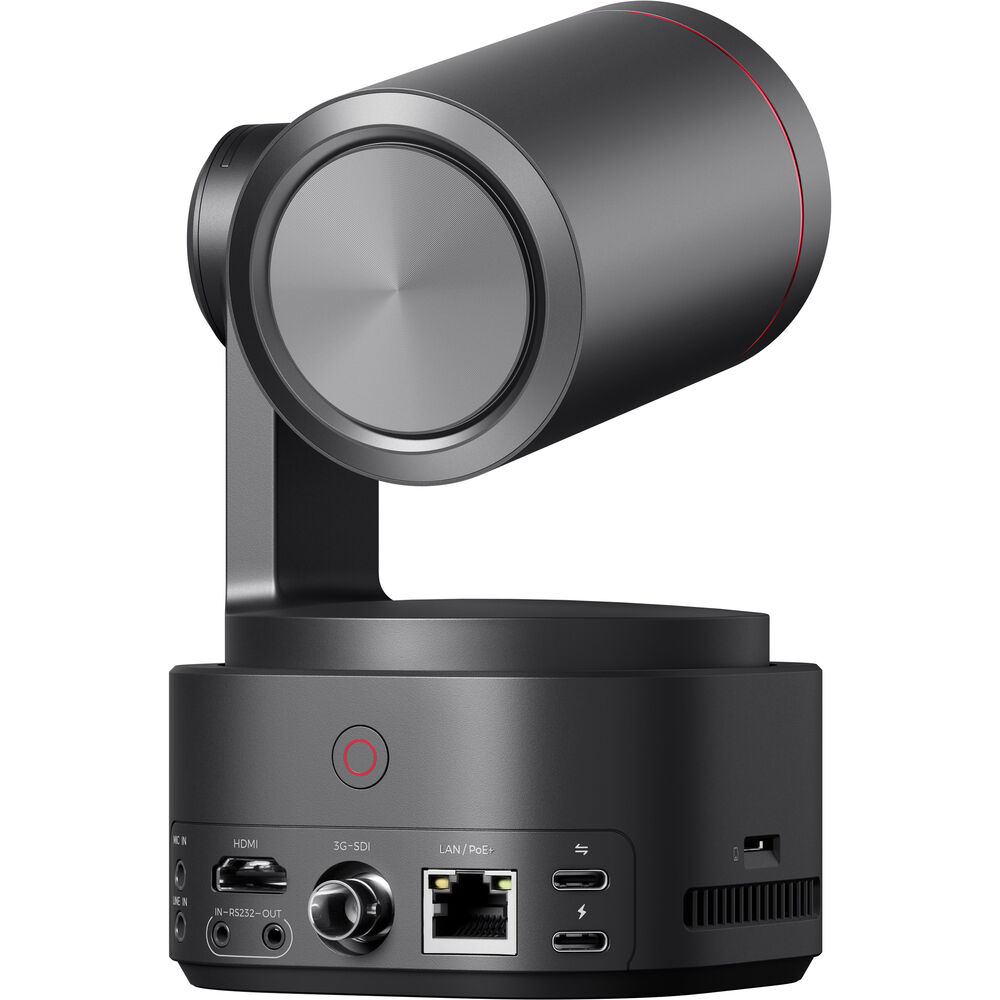

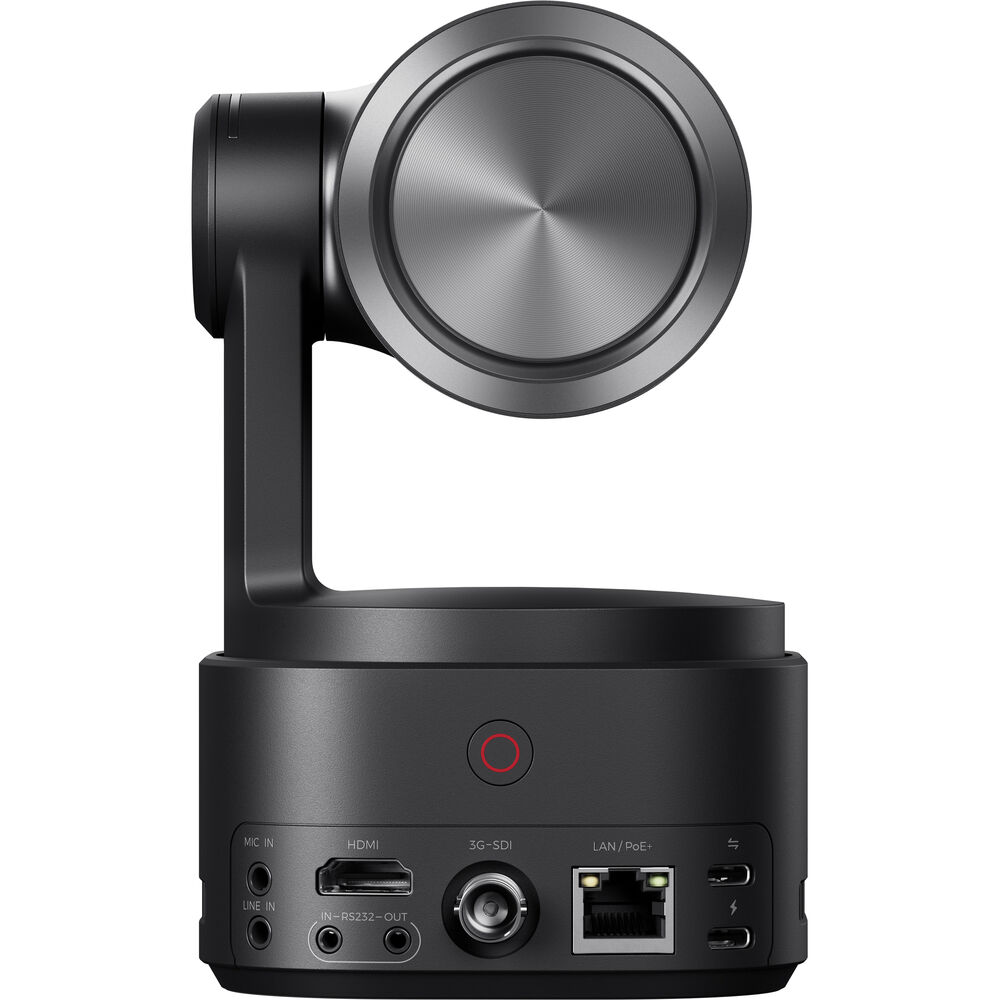

Video I/O
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output

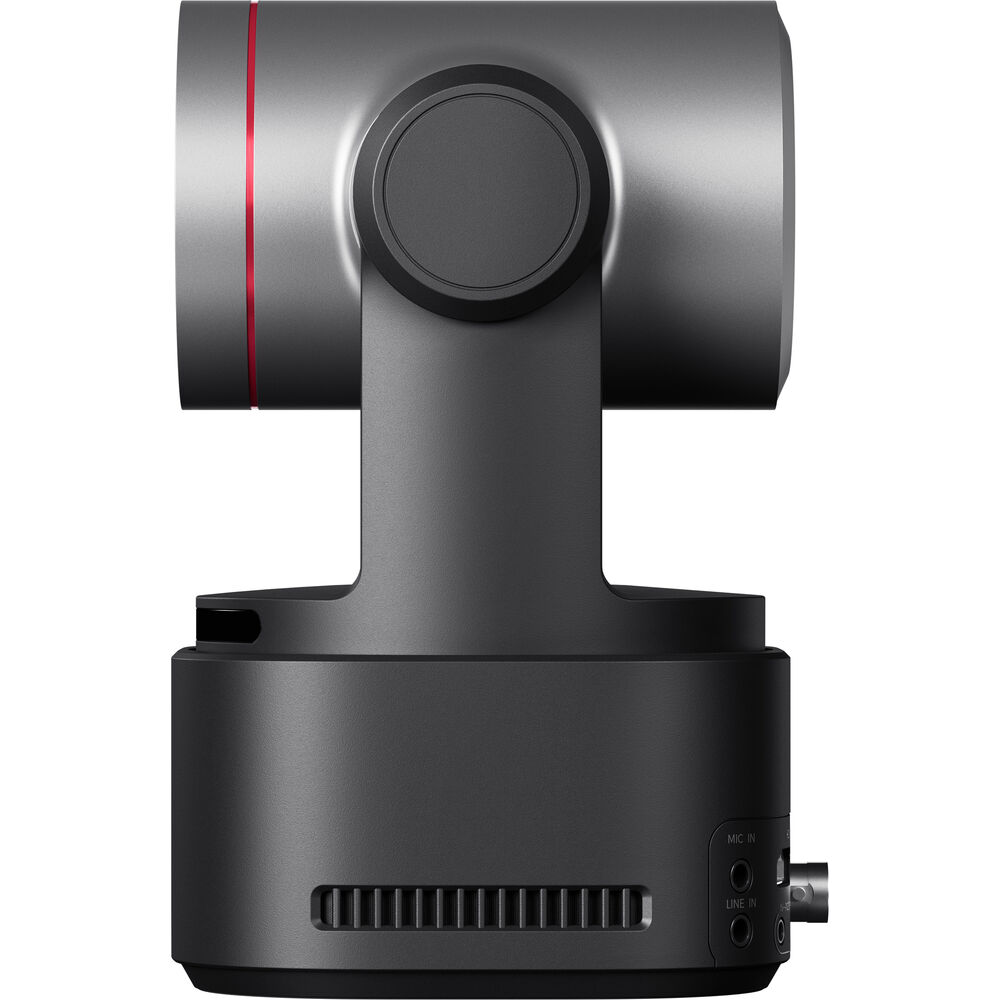

Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O
1x RJ45 (Ethernet) Control/Data Input/Output
1x 2.5 mm Sub-Mini (RS-232) Control Input
1x 2.5 mm Sub-Mini (RS-232) Control Output
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
Yes: PoE+ 802.3at
Power I/O
1x USB-C (5 to 20VDC at 2 A) Input
Power Consumption
PoE: 30 W
Environmental
Operating Conditions
14 to 104°F / -10 to 40°C
Storage Conditions
14 to 104°F / -10 to 40°C
General
Mounting
1x 1/4"-20 Female
Dimensions (W x H x D)
3.8 x 6.1 x 4.1" / 97.5 x 155 x 103.5 mm
Weight
2 lb / 1.066 kg (Body Only)
