OSEE GoStream Duet
Couldn't load pickup availability
Description

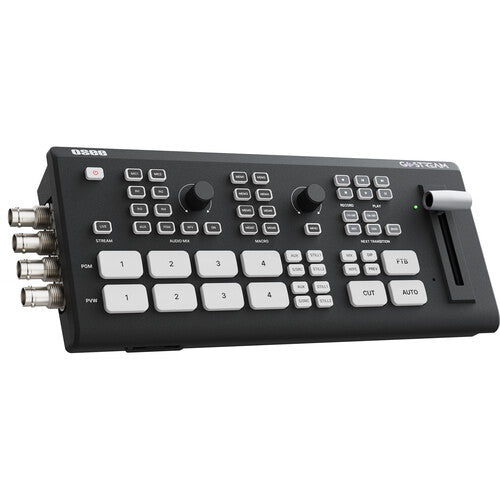

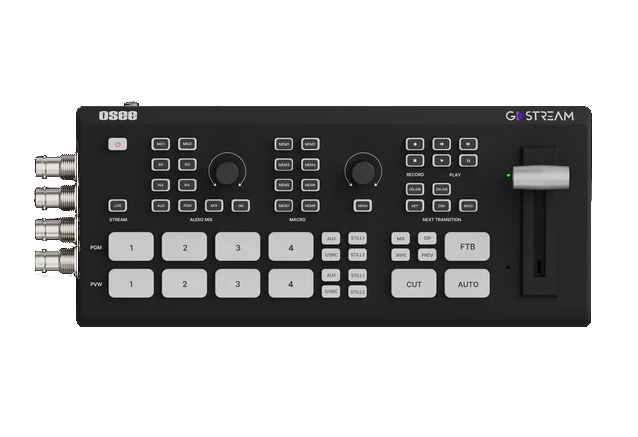

Osee GoStream Duet Multiple Camera SDI and HDMI Live Stream Video Mixer Switcher with SD Record and NDI HX Supported
|
5 Video Inputs |
Channel 1-4: |
HDMI/SDI auto-detection, configurable. |
|
|
Channel 5: |
NDI, UVC, internal video player selectable. |
||
|
3 Video Outputs |
HDMI OUT 1-2: |
Selected from 5 video input channels, multiview, PVW or PGM. |
|
|
USB 1: |
UVC output to OBS, Zoom, Vmix, etc. |
||
|
2 Audio Input |
MIC 1-2: |
3.5mm Jack, MIC, MIC+power and Line configurable. |
|
|
1 Audio Output |
PHONE: |
3.5mm Jack, selected audio monitoring. |
|
|
Control |
|
Internal menu, software for PC or MAC, Stream Deck via companion plug-in. |
|
|
Direct Streaming |
Ethernet: |
3 platforms simultaneous streaming, RTMP, up to 10Mb/s. |
|
|
Audio Mixer |
2 Analog Inputs, 4 HDMI/SDI audio, 1 AUX audio. On/Off/AFV control, fader gain, balance, and delays control; 8 audio meter display. |
||
|
Multiview Monitoring |
PGM/PVW, 5 channel preview, STILL 1-2 with source label (UMD), tally, marker, audio meter, fade Level, audio on/off and AFV; Recording, playback and streaming status; Control Menu. |
||
|
Recording and Playback |
Internal recording and playback high-quality H.264 up to 70Mb/s while streaming. Internal SD card or external SSD is supportted. |
||
|
Input video format |
1280x720p@50/59.94/60,1920x1080p@23.98/24/25/29.97/30/50/59.94/60, 1920x1080i@50/59.94/60 |
||
|
Output video format |
1920x1080p@23.98/24/25/29.97/30/50/59.94/60 |
||
|
Macro |
Up to 8 Macros can be accessed via panel, more via software. | ||
|
Super Source |
2 windows + 1 background, 4 pre-defined layout with modification. |
||
|
Other Effects |
Upstream Key: 1; DSK: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 patterns; Color Generator: 5; Pattern Generator: 2; PIP: 1; Still Image: 2 generators, 32 storage with key and fill, PNG format. |
||
|
Environmental |
Power: 12V DC/14W; Weight: 500g; Dimension (W×H×D): 252.4×49.3×107.3mm; Working Temperature: 5°C to 40°C (41°F~104°F). |
||
