Kato Vision KT-HD62DBN HD PTZ Camera

R 16,995.00
By Applix
Description

Overview

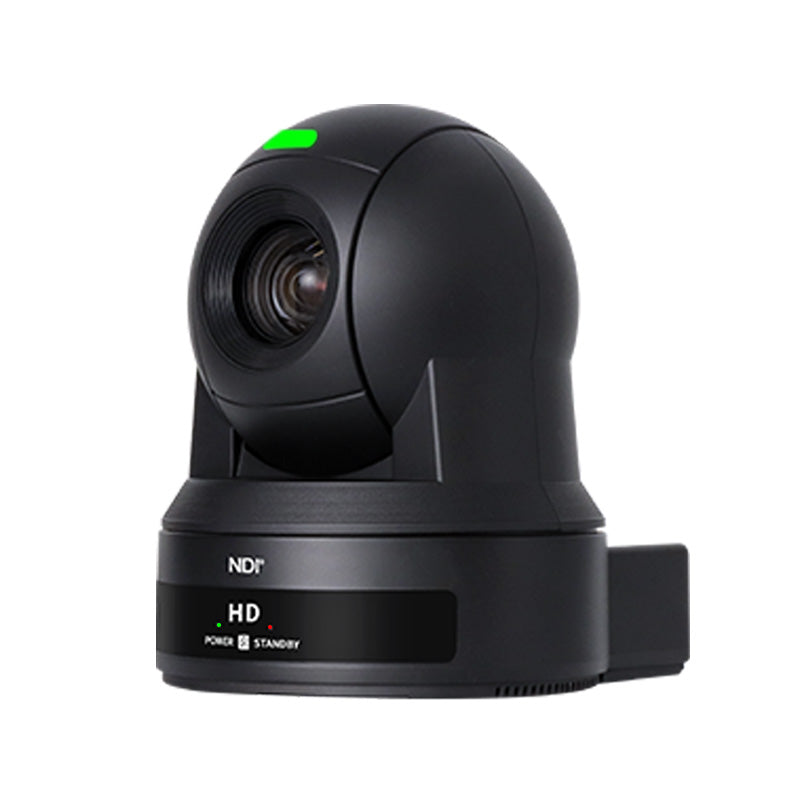

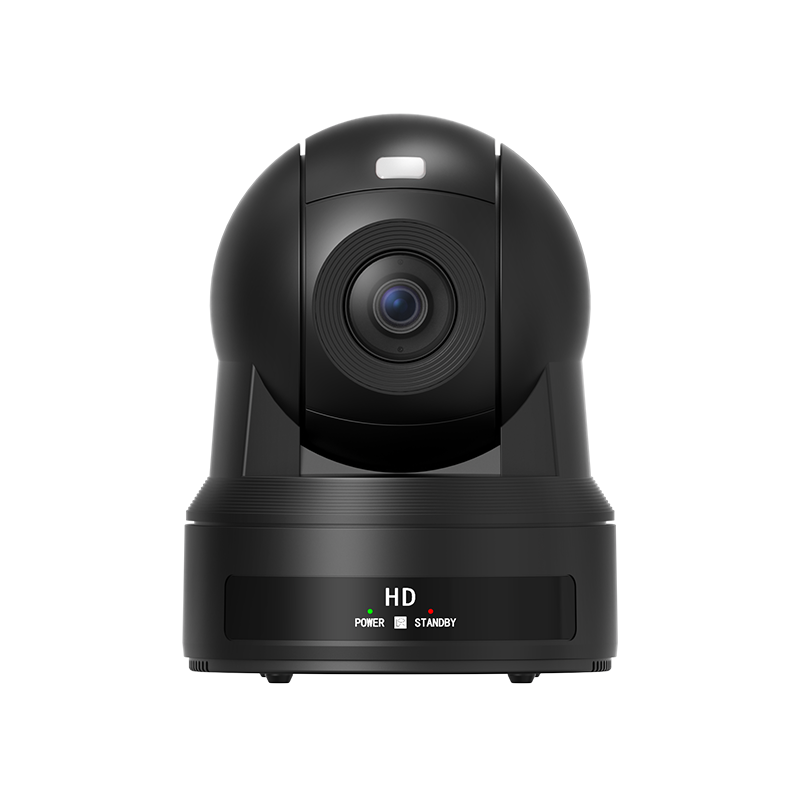

The KT-HD62DBN is a professional HD PTZ camera designed for high-quality video capture across a wide range of applications, including video conferencing, live streaming, telemedicine, education, and worship services. Featuring a Sony 1/2.8" CMOS sensor with 2.07 megapixels, it delivers crystal-clear 1080p resolution at up to 60 frames per second. With advanced optical zoom options (20x or 30x), multiple connectivity interfaces, AI-powered auto-tracking, and low-light performance, this camera ensures reliable, versatile, and professional-grade video production.

Key Features

  • Full HD 1080p at 60fps for smooth, high-resolution video.

  • 20x or 30x Optical Zoom with 16x digital zoom, distortion-free wide view angle.

  • Multi-interface Support: USB 3.0, HDMI, LAN, and 3G-SDI.

  • NDI®|HX2/Full NDI® (Optional) for seamless IP workflows.

  • Low-Light Performance with advanced CMOS sensor and 2D/3D digital noise reduction.

  • AI Tracking & Auto Framing for intelligent subject tracking.

  • Flexible Installation: Desktop, ceiling, or wall mounting.

  • Wide Application Scenarios: Telemedicine, education, corporate, government, and houses of worship.

Specifications

Image Parameters

  • Sensor: Sony 1/2.8" CMOS, 3.5 MP (2.07 effective MP)

  • Resolution: HDMI/SDI 1080p60/59.94/50/30/29.97/25, 720p60/50

  • Scan Mode: Progressive (line by line)

  • Lens Options:

    • KT-HD62A: 20x optical zoom (f=5.2–104 mm, F1.55–3.13)

    • KT-HD62DB: 30x optical zoom (f=5.2–156 mm, F1.3–F4.8)

  • Digital Zoom: 16x

  • Horizontal View Angle: 58.7° (20x), 58.1° (30x)

  • Minimum Illumination: 0.1 Lux (F1.3, AGC ON)

  • S/N Ratio: ≥50dB

Functions

  • Exposure & White Balance: Auto/Manual/Iris Priority/Shutter Priority

  • Image Enhancements: Backlight Compensation, 2D & 3D Noise Reduction

  • Pan/Tilt Range: 355° pan, -30°–+90° tilt

  • Pan/Tilt Speed: Pan 1–80°/s, Tilt 1–60°/s

  • Presets: 9 via IR remote, up to 255 via PC/joystick

Interfaces

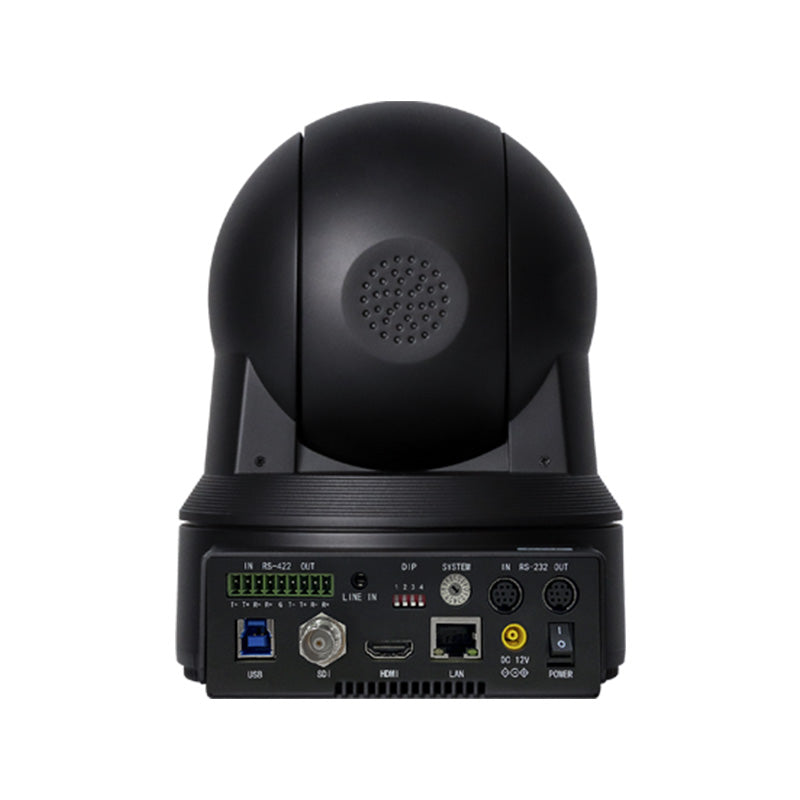

  • Video Outputs: 1x HDMI 1.4, 1x 3G-SDI, 1x USB 3.0, 1x RJ45 (LAN)

  • Audio Input: Line-in 3.5mm

  • Network Protocols: ONVIF, RTSP, RTMP, SRT, VISCA, NDI®|HX2 (optional)

  • Control: RS232, RS422/485, VISCA, PELCO-D/P

Audio

  • Compression: AAC

  • Bitrate: 128kbps

General

  • Power: DC 12V, Max. 18W

  • Operating Temperature: 0–40°C

  • Weight: 1.3 kg

  • Dimensions: 126(W) x 189(D) x 198(H) mm
